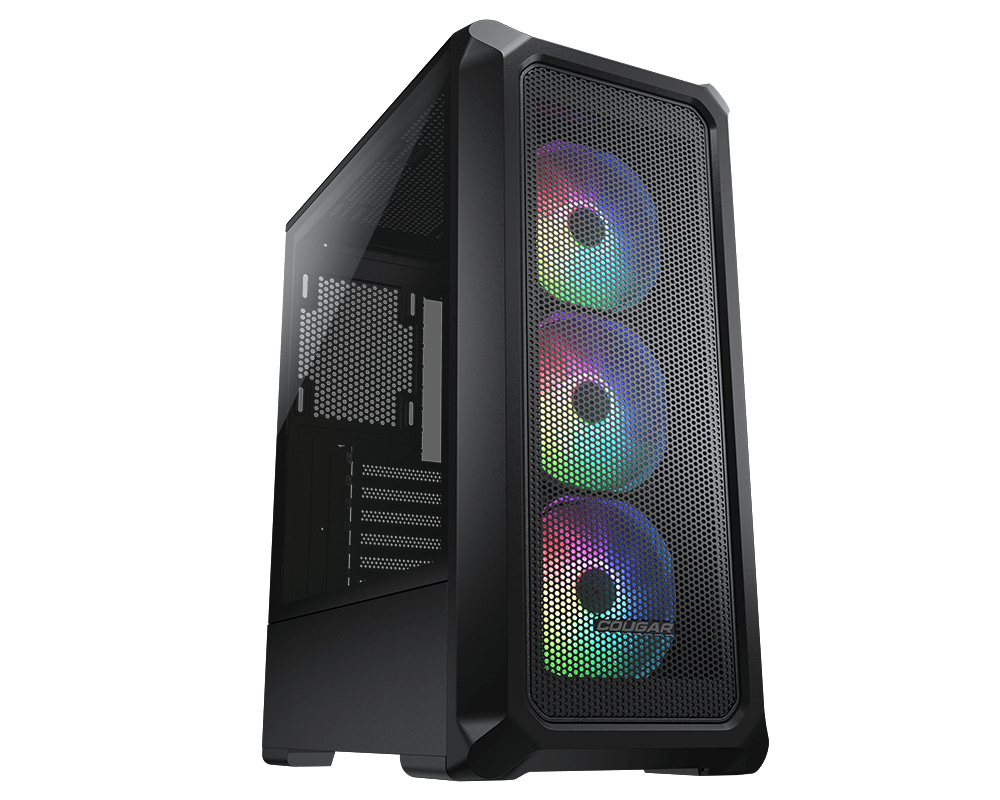

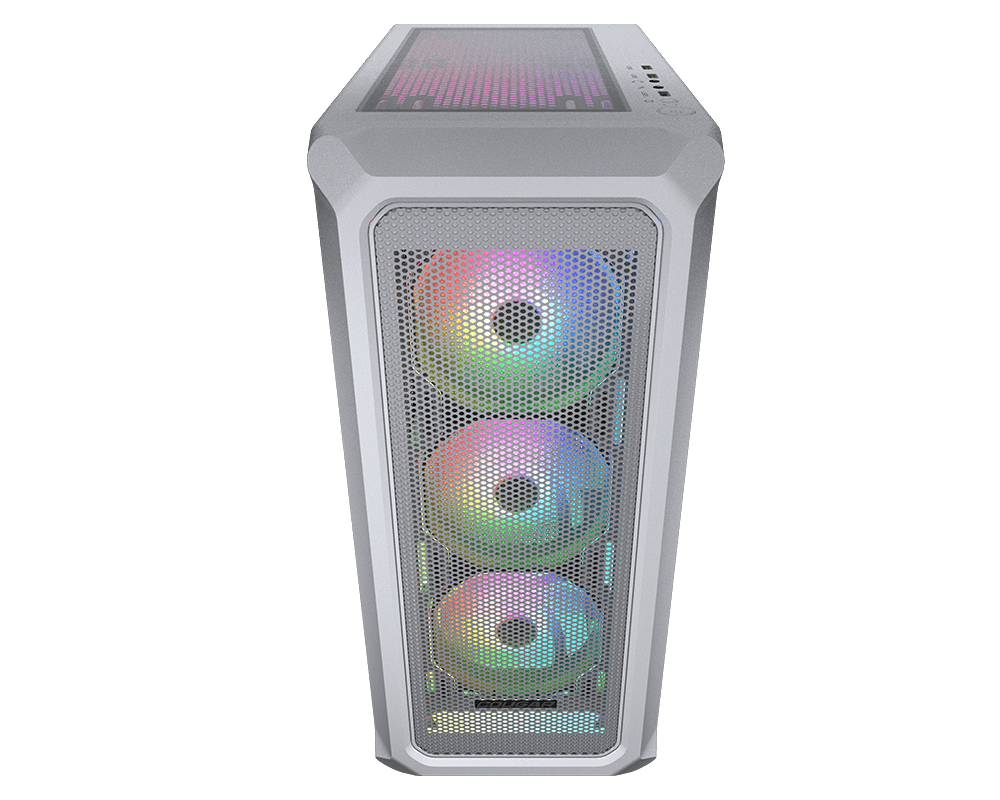

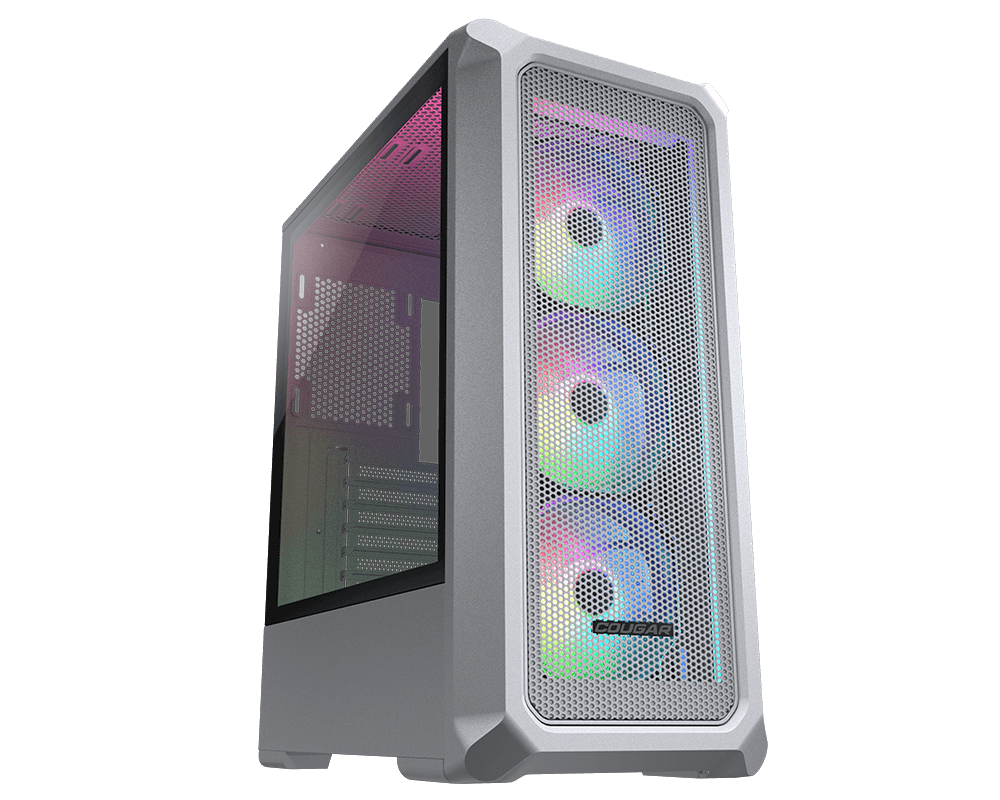

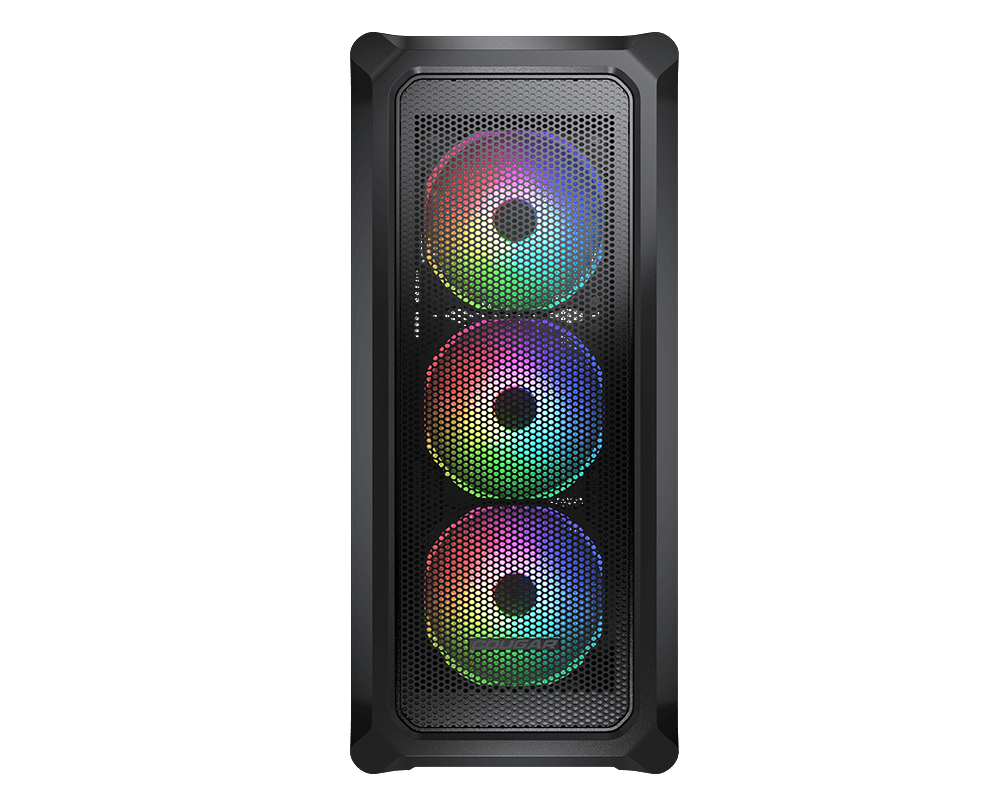

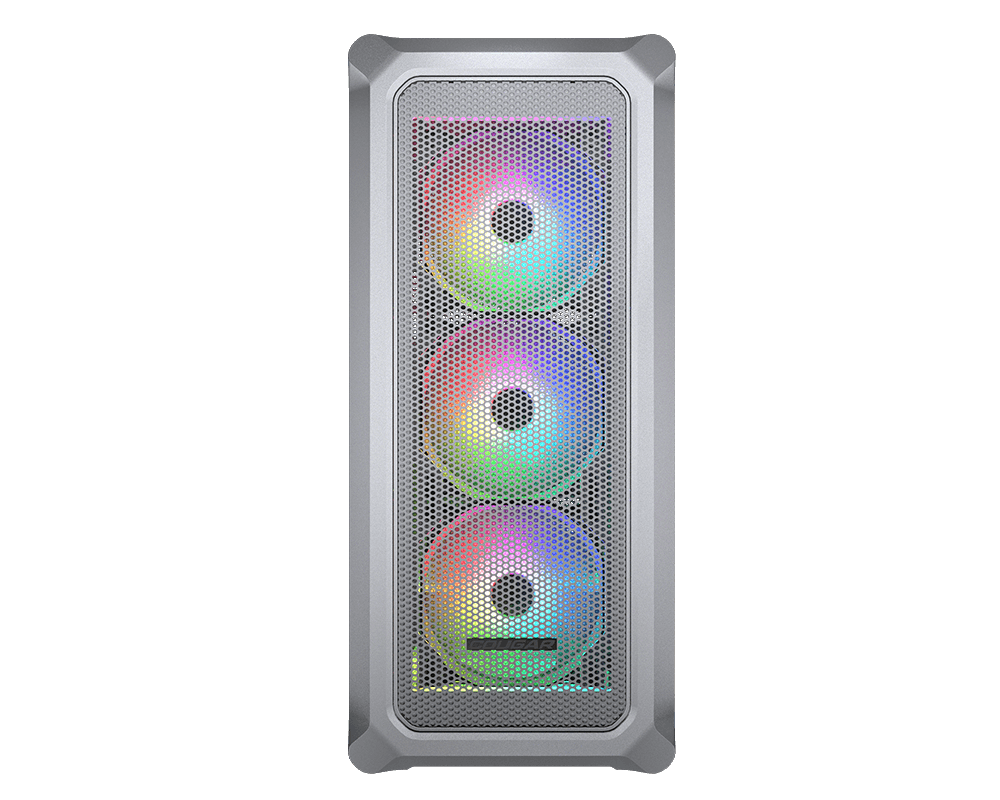

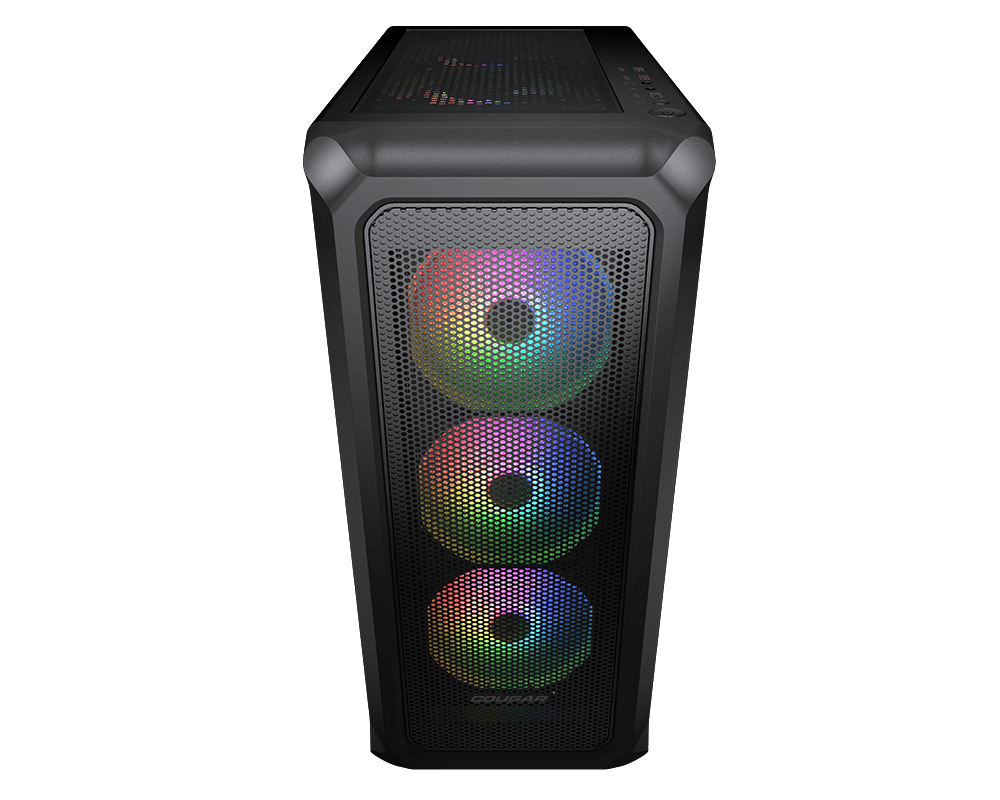

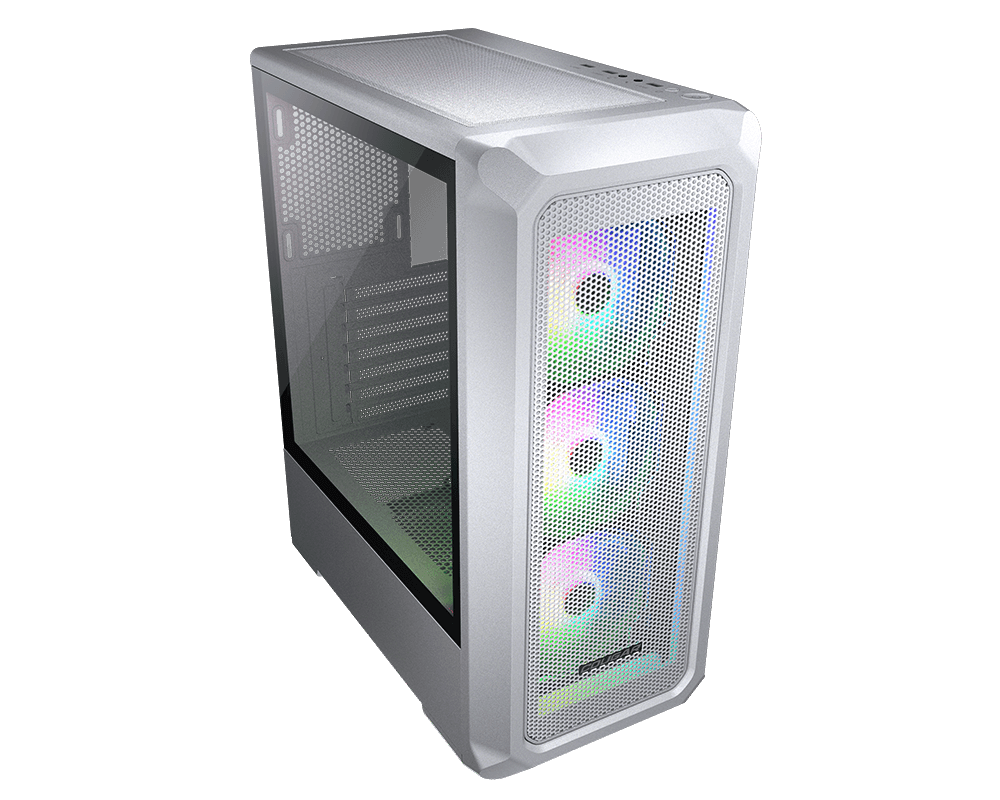

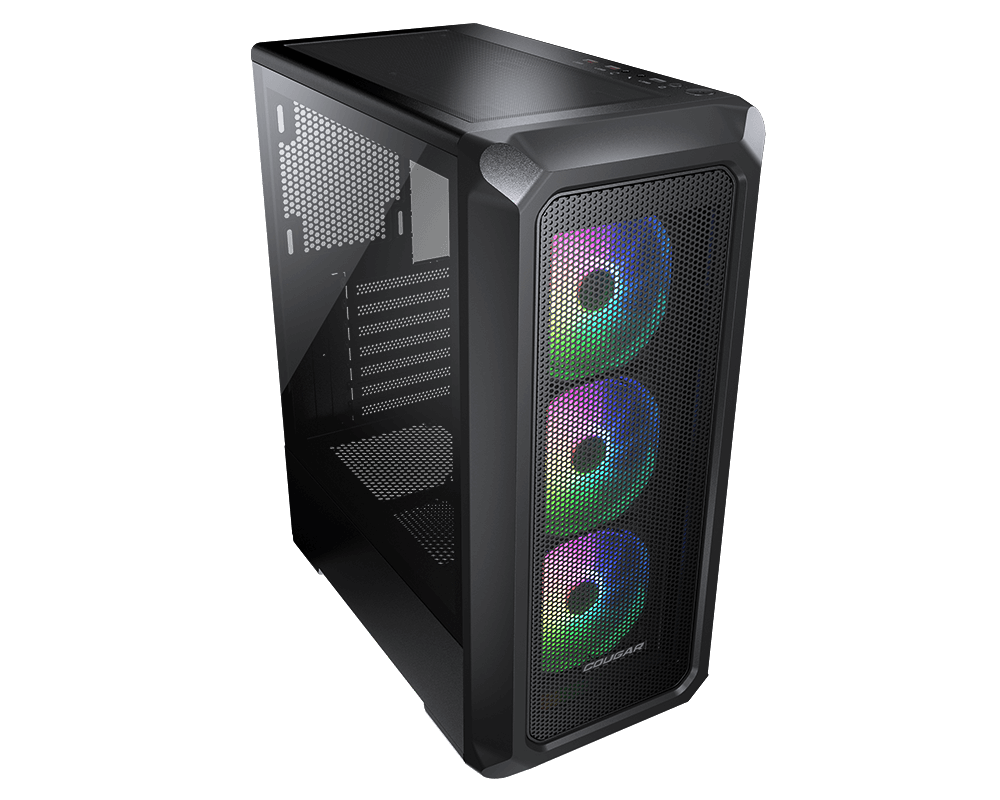

Elegant Looks with Superior Airflow
Archon 2 Mesh RGB’s front panel combines with excellent appearance and unobstructed airflow. The breathable steel mesh brings powerful cooling performance while keeping dust from getting in through.
Incredible RGB Lighting
Archon 2 Mesh RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects with the dedicated RGB button. The ARGB fans are also adaptable with any compatible motherboards’ 5V ARGB connection for system-wide lighting synchronization.
Great Support for Components
Its advanced support for up to 315mm-long graphics cards, which allows you to enjoy the latest games with smooth framerates.

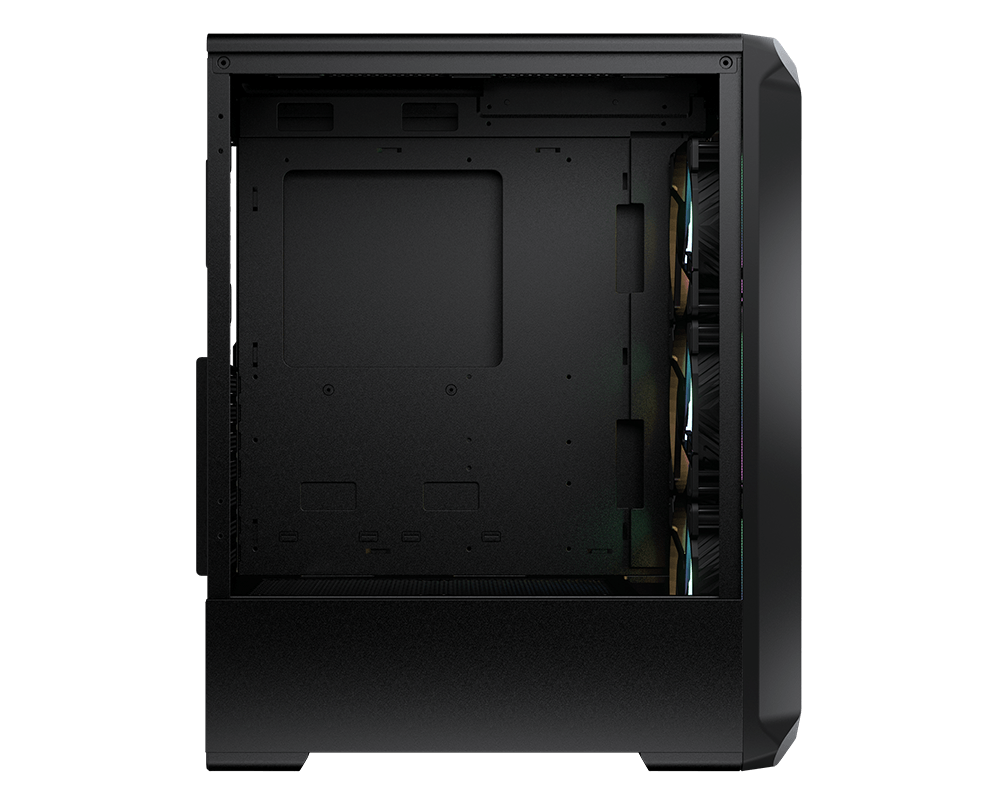

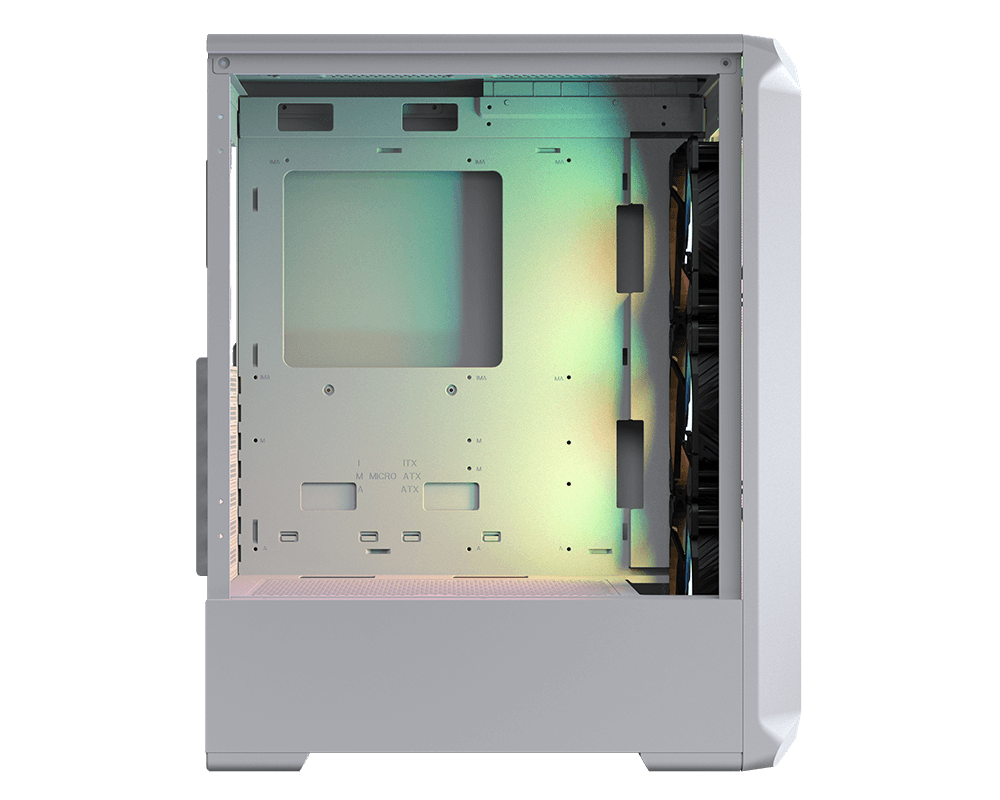

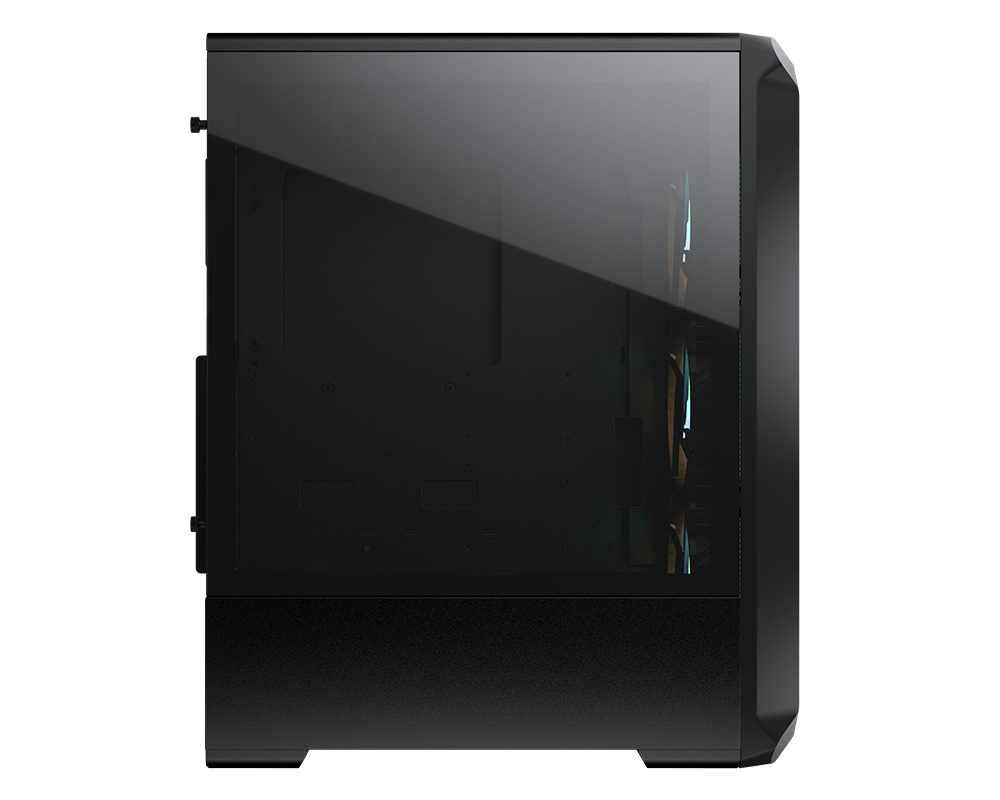

Clean and Tidy Looks
Unlike most massive tempered glass panels, the full-length PSU shroud presents a distinctive view of divided design. The full-length PSU cover also allows you to hide the cables, improve the internal airflow, and showcase a clean build!
Top-notch Cooling
Archon 2 Mesh RGB’s compact layout allows you to install six fans, a 360mm water cooling radiator, and a 170mm CPU cooler. This immense cooling potential will enable you to choose components freely.
Water cooling radiator support
Air cooling support
Сравнение
 |
 |
||
| Название модели | Archon 2 Mesh RGB ( Black / White ) |
Archon 2 RGB ( Black / White ) |
|
| Модель №. | CGR-5CC5B-MESH-RGB / CGR-5CC5W-MESH-RGB | CGR-5CC5B-G-RGB / CGR-5CC5W-G-RGB | |
| Передняя панель | Mesh | Tempered Glass | |

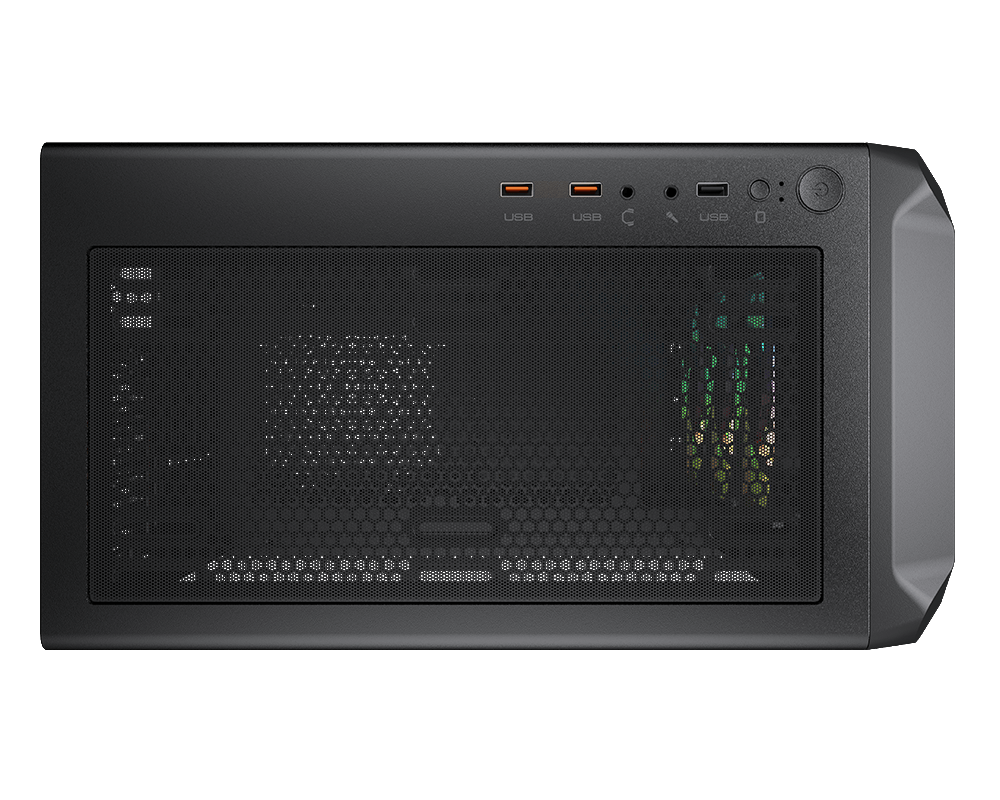

| Панель ввода / вывода | USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button | USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button | |
| Предустановленные вентиляторы |
|||
| Front | 120mm ARGB fan x 3 pre-installed | 120mm ARGB fan x 3 pre-installed | |
| RGB Sync. with M/B | Yes | Yes | |
| Прозрачная левая панель | 3mm Tempered Glass | 3mm Tempered Glass | |
Характеристики
| Название модели | Archon 2 Mesh RGB (Black / White) | |
|---|---|---|
| Форм-фактор корпуса | Mid Tower | |
| Размеры (ШxВxГ) | 210 x 470 x 380 (mm) 8.3 x 18.5 x 15 (in) |
|
| Тип материнской платы | Mini ITX / Micro ATX / ATX | |
| 5,25-дюймовый отсек для привода | 1 | |
| 3,5-дюймовый отсек для HDD | 2 | |
| 2,5-дюймовый отсек для SSD | 2+1 (converted from 3.5" drive bay) / (2 SSD trays included) | |
| Слоты расширения | 7 | |

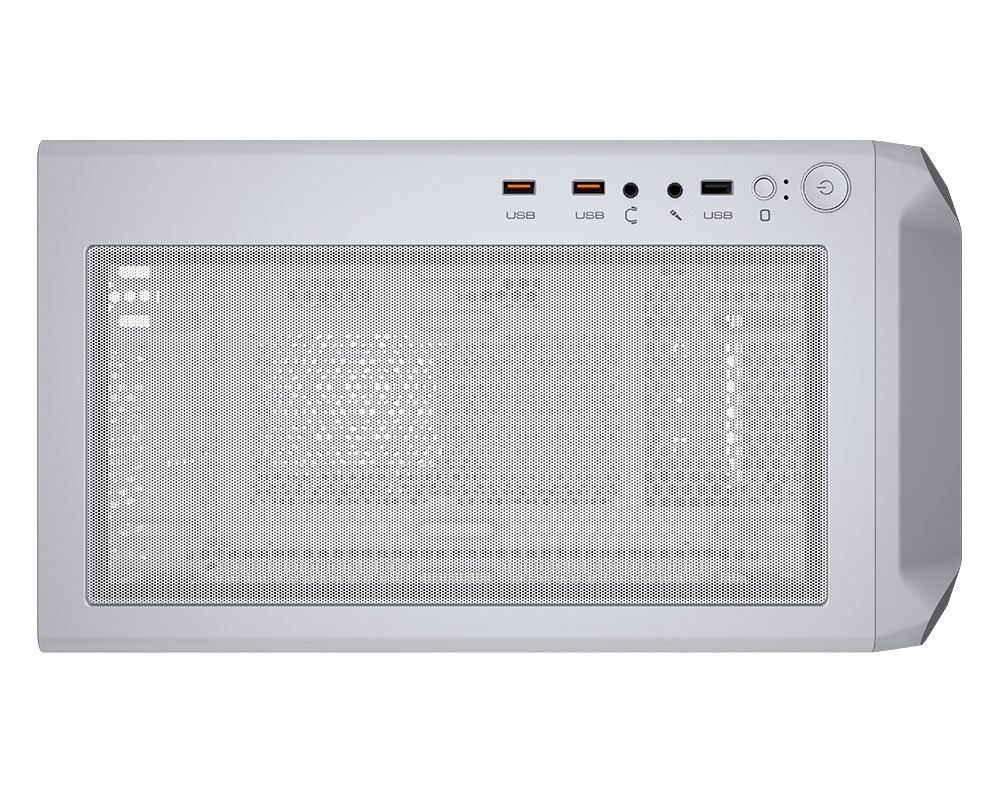

| Панель ввода / вывода | USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button | |
| Максимальное количество вентиляторов | 6 макс. | |
| Поддержка вентилятора охлаждения | Спереди | 120mm x 3 / 140mm x 2 (120mm ARGB fan x 3 pre-installed) |
| Сверху | 120mm x 2 / 140mm x 2 | |
| Сзади | 120mm x 1 | |
| Поддержка водяного охлаждения | Спереди | *360mm / 280mm / 240mm / 140mm / 120mm |
| Сверху | 240mm / 120mm | |
| Сзади | 120mm | |
| Прозрачная левая панель | 3mm Tempered Glass | |
| RGB Sync with M/B | Yes | |
| Максим. длина видеокарты | 315 (mm) / 12.4 (in) | |
| Максим. высота кулера процессора | 170 (mm) / 6.7 (in) | |
| Максим. длина блока питания | *160 (mm) / 6.3 (in) | |
* When install a 360mm radiator at the front, the maximum PSU length is 140mm.
Данные упаковки
| Black | White | |
|---|---|---|
| Product Number (P/N) | 385CC50.0001 | 385CC50.0002 |
| EAN CODE | 4710483773013 | 4710483773020 |
| UPC CODE | 192554003894 | 192554003900 |
| JAN CODE | 4541995036385 | 4541995036392 |
| Individual Size W/O Packaging Weight (N.Weight) | 4.95 (kg) | 5 (kg) |
| Individual Packaging Weight (G.Weight) | 5.85 (kg) | 5.9 (kg) |
| Individual Size W/O Packaging (WxHxD) | 210 x 470 x 380 (mm) | |
| Individual Packaging Size (WxHxD) | 267 x 442 x 521 (mm) | |
